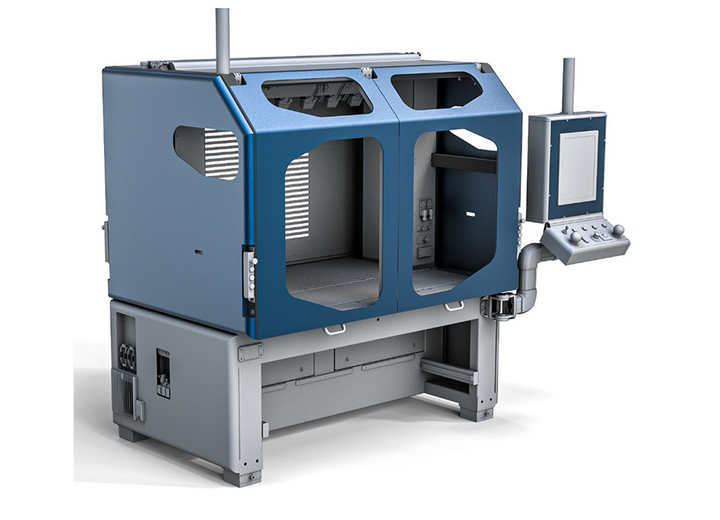

FlexCell  – The all-rounder

Modular design concept

The process-independent platform of the FlexCell can be set up and modified as required. The individual modules can be easily unplugged and exchanged with a changeover trolley for quick changeovers. Machine plates with T-slots ensure precise positioning.

Compatible work modules

Bending module, punching module, riveting module, contact welding module, threading module, pilot module, radial module, precision punching module, eccentric punching module (up to 8 t), tong feed module, feed module, eccentric punching module (up to 8 t), assembly module.

Central control/operation

Each module is driven by a separate servo motor, which is synchronized via the control system in the console cabinet. The servo drives for the individual modules are selected via a touch screen. The work processes can be tested and operated individually using an electronic handwheel. The motor parameters and settings are stored in the tool memory – no programming knowledge is required.

Machine base and clamping platens

The machine base is not modular in design, but is available with clamping lengths of 1000 mm, 1800 mm, and 2600 mm. The modules can be positioned anywhere on the clamping plate in the feed direction.

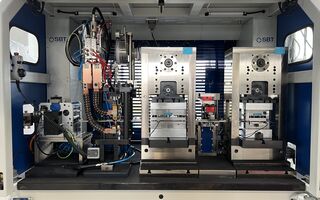

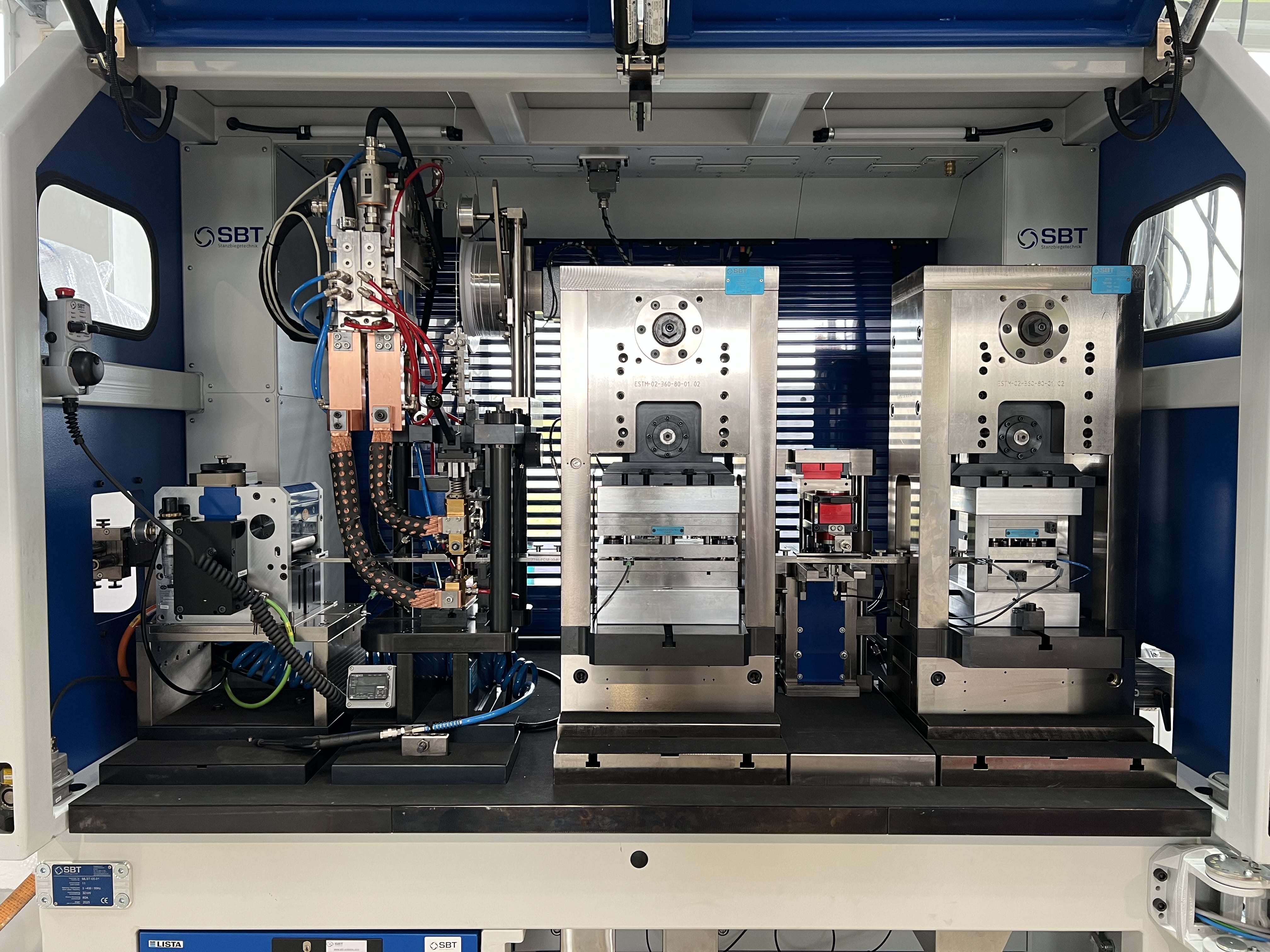

Application examples

The product highlights

• 3 sizes available
• Up to 9 machining modules can be integrated
• Central control via touch screen
• Module and motor settings can be saved
• Decentralized drive technology
• Synchronous servo axes
• Numerous additional functions
